Submersible Sewage Pumps

Submersible Sewage Pumps JDW Series

In past few decades industrial manufacturing sector has grown with a rapid pace leading to higher living standards. This has also led to major problem by form industrial effluent and household sewage. Vast quantities of waste water have damaged the eco system and polluted our water source to a great extent. Toshio Technology has been making every endeavor in developing the waste water treatment equipment. In addition to waste water pumps and sewage pumps, the company has developed submersible aerator for efficient treatment rate of waste water. These aerators have been widely used in domestic and overseas waste water treatment plants.

Toshio offers wide range of Submersible Dewatering pumps suitable to remove water/drainage. Pumps are designed to handle solids upto 15mm and deliver water up to 30 mtrs.

Sump pumping is the simplest dewatering technique, whereby groundwater is allowed to seep into the excavation, and is then collected in sumps and pumped away for disposal. Each sump is equipped with a robust pump with the capacity to handle some solids. In favourable ground conditions sump pumping can be a very effective and economic method to achieve modest drawdowns. The technique can work well in well-graded coarse soils (such as gravelly sands, sandy gravels and coarse gravels) or in hard fissured rock.

Application :-

Suitable for landscape and horticulture.

Intake well at rivers, lakes and reservoirs, agriculture and aquaculture.

Irrigation from channels, open wells

Emergency flood water drainage.

Dry dock drainage

Bypass and backup pumping

Tank cleaning

Storm water drainage

Dewatering at construction sites

Technical Data :-
Flow Range 100~1600 lpm
Max. Head -
Liquid Temp. 5'~40' C
Frequency -
Spherical Clearance Up to 10 mm
MOC Pump casing FC200. Outer casing 7 stainer SS304. Impeller chromium - nickle steel.

**For performance curve, please download our online catalog.

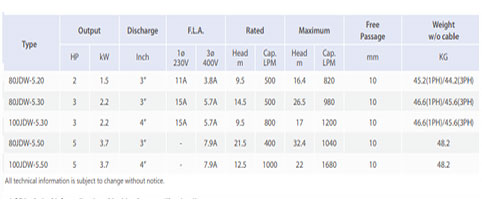

Performance Chart :-

JUBM Series - Light weight Submersible Drainage Pump


Range: 2HP - 5HP
Features :-

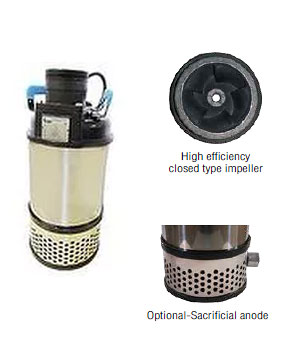

Impeller specially developed with chromium-nickle, good resistance against corrosion.

Circumferential cooling allows the pump to operate continuously above liquid level.

Robust SUS304 Outer casing.

Double mechanical seal and oil seal ensuring long life operation
